New Holland 200 SERIES SKID STEER LOADERS
|

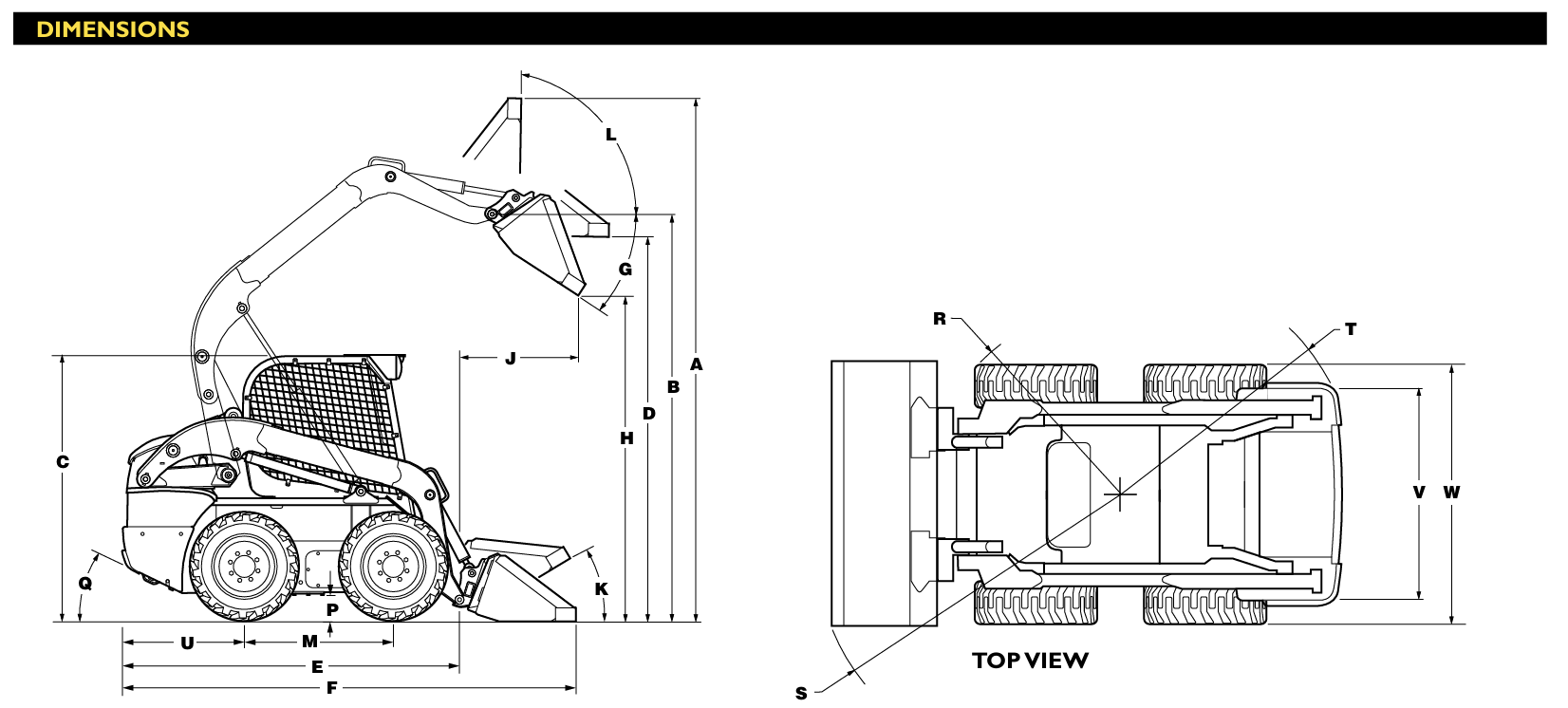

DIMENSIONS |
L218 |
L220 |
L223 |
L225 |
L230 |
|
Overall operating height |
|||||
|
A. with foundry/excavating bucket short lip |
3820 mm |
3845 mm |
4056 mm |
4056 mm |
4096 mm |
|
A. with low profile/standard lip bucket |
3927 mm |
3952 mm |
4159 mm |
4159 mm |
4199 mm |
|
A. with low profile extended/long lip bucket |
4055 mm |
4080 mm |
4287 mm |
4287 mm |
4327 mm |
|
Height to |
|||||
|
B. Bucket hinge pin |
3048 mm |
3073 mm |
3290 mm |
3290 mm |
3330 mm |
|
C. Top of ROPS |
1974 mm |
1998 mm |
2002 mm |
2002 mm |
2042 mm |
|
D. Bottom of level bucket, fully raised |
2877 mm |
2902 mm |
3115 mm |
3115 mm |
3155 mm |
|
Overall length |
|||||
|
E. without attachment with coupler |
2685 mm |
2685 mm |
2993 mm |
2986 mm |
2986 mm |
|
F. with foundry excavation bucket on ground |
3352 mm |
3338 mm |
3631 mm |
3624 mm |
3624 mm |
|
F. with low profile bucket |
3456 mm |
3440 mm |
3727 mm |
3727 mm |
3727 mm |
|
F. with low profile extended bucket |
3585 mm |
3569 mm |
3863 mm |
3856 mm |
3856 mm |
|
Dump |
|||||
|
G. Dump angle, |
52° |
52° |
55° |
55° |
55° |
|
H. Dump height |
|
|
|
|
|
|
with foundry/excavating bucket short lip |
2377 mm |
2402 mm |
2615 mm |
2615 mm |
2655 mm |
|
with low profile/standard lip bucket |
2251 mm |
2276 mm |
2556 mm |
2556 mm |
2596 mm |
|
J. Dump reach (max height) |
783 mm |
758 mm |
820 mm |
820 mm |
780 mm |
|
Maximum attachment rollback |
|||||
|
K. Bucket on ground |
35° |
34° |
34° |
34° |
33° |
|
L. Bucket at full height |
88° |
88° |
85° |
85° |
85° |
|
Wheelbase and Clearance |
|||||
|
M.Wheelbase |
1128 mm |
1128 mm |
1322 mm |
1322 mm |
1322 mm |
|
P. Ground clearance (bottom of belly pan) |
178 mm |
203 mm |
203 mm |
203 mm |
243 mm |
|
Q. Angle of departure |
23° |
25° |
24° |
24° |
27° |
|
Clearance circle |
|||||
|
R. without bucket, |
1289 mm |
1289 mm |
1428 mm |
1428 mm |
1428 mm |
|
S. with foundry bucket in carry position |
2021 mm w/66” bucket |
2055 mm w/72” bucket |
2039 mm w/72” bucket |
2039 mm w/72” bucket |
2155 mm w/78” bucket |
|
S. with low profile bucket on ground |
2132 mm w/66” bucket |
2150 mm w/72” bucket |
2210 mm w/72” bucket |
2210 mm w/72” bucket |
2246 mm w/78” bucket |
|
S. with extended low profile on ground, in (mm) |
2250 mm w/66” bucket |
2268 mm w/72” bucket |
2323 mm w/72” bucket |
2323 mm w/72” bucket |
2352 mm w/78” bucket |
|
T. Clearance circle rear |
1606 mm |
1599 mm |
1796 mm |
1789 mm |
1789 mm |
|
U. Rear axle to bumper |
924 mm |
924 mm |
1034 mm |
1034 mm |
1034 mm |
|
V. Tread width |
1371 mm w/10” x 16.5” tires |
1448 mm w/12” x 16.5” tires |
1448 mm w/12” x 16.5” tires |
1465 mm w/12” x 16.5” tires |
1465 mm w/12” x 16.5” tires |
|
W. Overall width |
1678 mm |
1755 mm |
1768 mm |
1768 mm |
1930 mm |
|
ENGINE |
L218 |
L220 |
L223 |
L225 |
L230 |
|
Manufacturer/model |
ISM / N844LT |
ISM / N844LT |
FPT / F5C E5454 |
FPT / F5C E5454 |
FPT / F5C E5454 |
|
Type |
Diesel 4-stroke, Turbo, I.D.I. |
Diesel 4-stroke, Turbo, I.D.I. |
Diesel 4-stroke, Turbo, D.I. |
Diesel 4-stroke, Turbo, D.I. |
Diesel 4-stroke, Turbo, D.I. |
|
Cylinder |
4 |
4 |
4 |
4 |
4 |
|
Bore/stroke |
84 x 100 mm |
84 x 100 mm |
99 x 104 mm |
99 x 104 mm |
99 x 104 mm |
|
Displacement |
2.2 l |
2.2 l |
3.2 l |
3.2 l |
3.2 l |
|
Fuel injection |
Indirect |
Indirect |
Direct |
Direct |
Direct |
|
Fuel |
#2 diesel |
#2 diesel |
#2 diesel |
#2 diesel |
#2 diesel |
|
Fuel filter |
In-line w/water separator |
In-line w/water separator |
In-line w/water separator |
In-line w/water separator |
In-line w/water separator |
|
Air intake |
Turbocharged w/ internal EGR |
Turbocharged w/ internal EGR |
Turbocharged w/ external EGR |
Turbocharged w/ external EGR |
Turbocharged w/ external EGR |
|
Cooling |
Liquid |
Liquid |
Liquid |
Liquid |
Liquid |
|
Engine speeds |
|||||
|
High idle - no load |
3080 +/- 50 rpm |
3080 +/- 50 rpm |
2675 +/- 75 rpm |
2675 +/- 75 rpm |
2675 +/- 75 rpm |
|
Rated - full load |
2900 rpm |
2900 rpm |
2500 rpm |
2500 rpm |
2500 rpm |
|
Low idle |
1200 +/-50 rpm |
1200 +/-50 rpm |
1075+/- 75 rpm |
1075+/- 75 rpm |
1075+/- 75 rpm |
|
Horsepower per SAE J1349 |
|||||
|
Gross hp (kW) |
60 (45) @ 2800 rpm |
60 (45) @ 2800 rpm |
74 (55) @ 2500 rpm |
82 (61) @ 2500 rpm |
90 (67) @ 2500 rpm |
|
Net hp (kW) |
57 (42) @ 2800 rpm |
57 (42) @ 2800 rpm |
68 (51) @ 2500 rpm |
76 (57) @ 2500 rpm |
84 (63) @ 2500 rpm |
|
Peak torque |
171 Nm @ 1800 rpm |
171 Nm @ 1800 rpm |
275 Nm @ 1400 rpm |
305 Nm @ 1400 rpm |
340 Nm @ 1400 rpm |
|
POWER TRAIN |
L218 |
L220 |
L223 |
L225 |
L230 |
|
Drive pump mechanical |
|||||
|
Pump to engine ratio |
1:1 |
1:1 |
1:1 |
1:1 |
1:1 |
|
Displacement |
35 cc |
35 cc |
2.81 cc |
2.81 cc |
2.81 cc |
|
Flow at rated engine rpm @100% eff., |
102 Lpm |
102 Lpm |
115 Lpm |
115 Lpm |
115 Lpm |
|
Charge pressure |
24.5 bar |
24.5 bar |
24.5 bar |
24.5 bar |
24.5 bar |
|
System relief |
345 bar |
345 bar |
345 bar |
345 bar |
345 bar |
|
Control |
Direct mechanical |
Direct mechanical |
Mechanical servo |
Mechanical servo |
Mechanical servo |
|
Drive pump electro hydraulic |
|||||
|
Pump to engine ratio |
1:1 |
1:1 |
1:1 |
1:1 |
1:1 |
|
Displacement |
35 cc |
35 cc |
46 cc |
46 cc |
46 cc |
|
Flow |
102 Lpm |
102 Lpm |
115 Lpm |
115 Lpm |
115 Lpm |
|
Charge pressure |
25 bar |
25 bar |
25 bar |
25 bar |
25 bar |
|
System relief |
360 bar |
360 bar |
360 bar |
360 bar |
360 bar |
|
Control |
Electro hydraulic |
Electro hydraulic |
Electro hydraulic |
Electro hydraulic |
Electro hydraulic |
|
Drive motors |
|||||
|
Max displacement |
325 cc |
325 cc |
470 cc |
470 cc |
470 cc |
|
Displacement opt high speed |
200 cc |
200 cc |
282 cc |
282 cc |
282 cc |
|
Speed @ high idle engine |
313 rpm |
313 rpm |
244 rpm |
244 rpm |
244 rpm |
|
Speed @ optional high speed |
509 rpm |
509 rpm |
408 rpm |
408 rpm |
408 rpm |
|
Torque @ max displ. and relief pressure |
1784 Nm |
1784 Nm |
2694 Nm |
2694 Nm |
2694 Nm |
|
Travel speed |
|||||
|
Low range |
12.7 km/h |
12.7 km/h |
11.3 km/h |
11.3 km/h |
12.4 km/h |
|
High range (optional) |
18 km/h |
18 km/h |
16.9 km/h |
16.9 km/h |
18.5 km/h |
|
Final drive |
Single-reduction chain drive |
||||
|
Drive chain |
|||||
|
Size |
ASA #80 |
ASA #80 |
ASA #100 |
ASA #100 |
ASA #100 |
|
Axles |
|||||
|
Diameter |
50.8 mm |
50.8 mm |
61.94 mm |
61.94 mm |
61.94 mm |
|
Length |
384 mm |
384 mm |
398.7 mm |
398.7 mm |
398.7 mm |
|
Parking brake |
|||||
|
Type |
Spring applied, hydraulic release disc |
||||
|
Engagement |
Depress on/off brake button on instrument panel, disconnect lapbelt, get off seat, or stop engine |
||||
|
HYDRAULIC SYSTEM |
L218 |
L220 |
L223 |
L225 |
L230 |
|
Pumps |
|||||
|
Type |
Gear |
Gear |
Gear |
Gear |
Gear |
|
Displacement standard aux. |
24.9 cc |
24.9 cc |
34.1 cc |
34.1 cc |
34.1 cc |
|
Displacement high flow aux. |
12.5 cc |
12.5 cc |
18.3 cc |
18.3 cc |
18.3 cc |
|
Pump flow |
72 Lpm |
72 Lpm |
85 Lpm |
85 Lpm |
85 Lpm |
|
Optional high flow |
109 Lpm |
109 Lpm |
131 Lpm |
131Lpm |
131Lpm |
|
Loader control valve |
|||||
|
Type |
3 spool / open center / series |
||||
|
Relief pressure |
210 bar |
210 bar |
210 bar |
210 bar |
210 bar |
|
Hydraulic filter |
6 micron / spin on |
6 micron / spin on |
6 micron / spin on |
6 micron / spin on |
6 micron / spin on |
|
CYLINDERS |
L218 |
L220 |
L223 |
L225 |
L230 |
|
Lift cylinder |
|||||
|
Bore diameter |
57 mm |
57 mm |
64 mm |
64 mm |
64 mm |
|
Rod diameter |
35 mm |
35 mm |
45 mm |
45 mm |
45 mm |
|
Stroke in |
681mm |
681mm |
852 mm |
852 mm |
852 mm |
|
Closed length |
982 mm |
982 mm |
1192 mm |
1192 mm |
1192 mm |
|
Bucket cylinders |
|||||
|
Bore diameter |
64 mm |
70 mm |
76 mm |
76 mm |
76 mm |
|
Rod diameter |
35 mm |
35 mm |
38 mm |
38 mm |
38 mm |
|
Stroke |
410 mm |
410 mm |
410 mm |
410 mm |
410 mm |
|
Closed length |
610 mm |
610 mm |
610 mm |
610 mm |
610 mm |
|
WEIGHTS |
L218 |
L220 |
L223 |
L225 |
L230 |
|
Operating weight |
2690 kg |
2930 kg |
3350 kg |
3580 kg |
3765 kg |
|
Shipping weight, with bucket |
2550 kg |
2795 kg |
3200 kg |
3430 kg |
3610 kg |
|
SERVICE CAPACITIES |
L218 |
L220 |
L223 |
L225 |
L230 |
|
Fuel tank |
75.5 l |
75.5 l |
96.5 l |
96.5 l |
96.5 l |
|
Engine oil with filter |
8.5 l |
8.5 l |
10 l |
10 l |
10 l |
|
Hydraulic system |
|||||
|
Reservoir |
16.2 l |
16.2 l |
22.75 l |
22.75 l |
22.75 l |
|
Chain tanks (per side) |
6.7 l |
6.7 l |
7.4 l |
7.4 l |
7.4 l |
|
PERFORMANCE SPECS |
L218 |
L220 |
L223 |
L225 |
L230 |
|
Rated operating load |
|||||
|
50% tip |
818 kg |
905 kg |
1020 kg |
1135kg |
1360 kg |
|
Tipping load |
1632 kg |
1814 kg |
2041kg |
2268 kg |
2722 kg |
|
Breakout forces |
|||||
|
Lift cylinder * |
11.7 kN |
15.3 kN |
22.6 kN |
22.6 kN |
28.2 kN |
|
Bucket cylinder * |
24.7 kN |
32.5 kN |
38.3 kN |
38.3 kN |
38.3 kN |
|
Cycle times |
|||||
|
Raise |
3.0 sec |
3.0 sec |
3.9 sec |
3.9 sec |
3.9 sec |
|
Lower |
2.4 sec |
2.4 sec |
2.5 sec |
2.5 sec |
2.5 sec |
|
Dump |
2.2 sec |
2.6 sec |
2.7 sec |
2.7 sec |
2.7 sec |
|
Roll back |
1.5 sec |
1.8 sec |
2.0 sec |
2.0 sec |
2.0 sec |
